A-13290-8-1/4
Spojka so zárezným prstencom Koleno | vnútorný závit
A-13290-8-1/4
Spojka so zárezným prstencom Koleno | vnútorný závit
Produktové údaje PDF
downloads.downloaddownloads.3dModel
downloads.download| variants.productNumber |
|---|

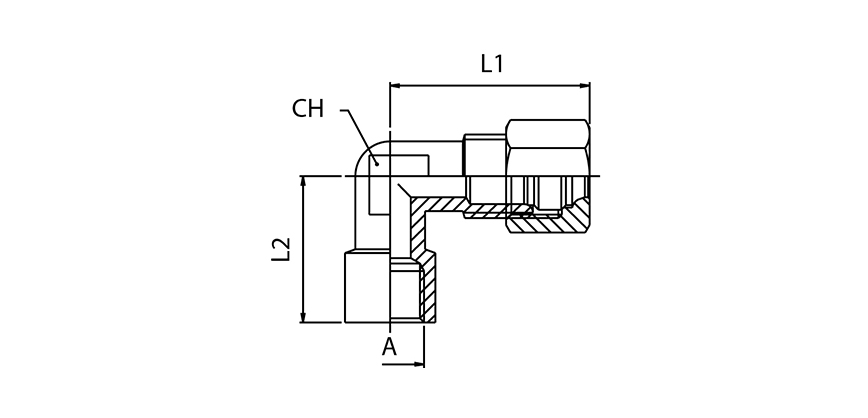

| Typ | Priemer hadice | Prípoj A | L1 | L2 | CH |
|---|---|---|---|---|---|
| A-13290-4-1/8 | 4 | G 1/8" | 23 | 18 | 8 |
| A-13290-6-1/8 | 6 | G 1/8" | 24 | 18 | 9 |
| A-13290-6-1/4 | 6 | G 1/4" | 24,5 | 22,5 | 11 |
| A-13290-8-1/8 | 8 | G 1/8" | 30 | 21 | 11 |
| A-13290-8-1/4 | 8 | G 1/4" | 30,5 | 25,5 | 13 |
| A-13290-8-3/8 | 8 | G 3/8" | 31 | 25 | 14 |
| A-13290-10-1/4 | 10 | G 1/4" | 34 | 25 | 13 |
| A-13290-10-3/8 | 10 | G 3/8" | 34 | 25 | 14 |
| A-13290-10-1/2 | 10 | G 1/2" | 34 | 27 | 15 |
| A-13290-12-1/4 | 12 | G 1/4" | 36 | 26 | 14 |
| A-13290-12-3/8 | 12 | G 3/8" | 36 | 26 | 14 |
| A-13290-12-1/2 | 12 | G 1/2" | 36 | 27 | 15 |
| A-13290-14-1/2 | 14 | G 1/2" | 39 | 30 | 18 |
| A-13290-15-1/2 | 15 | G 1/2" | 39 | 30 | 18 |
| A-13290-16-1/2 | 16 | G 1/2" | 41,5 | 30 | 18 |
| A-13290-18-1/2 | 18 | G 1/2" | 41,5 | 29 | 20 |
| A-13290-18-3/4 | 18 | G 3/4" | 44,5 | 33,5 | 20 |
| Materiál tesnenia: | Bez tesnenia |
|---|---|
| Prevedenie: | Závitová |
