A-13480-22-1/2

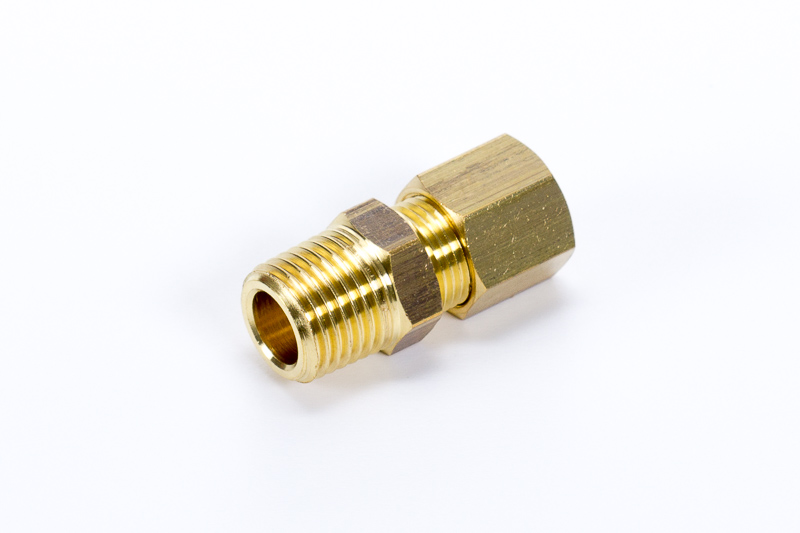

Spojka so zárezným prstencom Priamy tvar | kužeľový závit
A-13480-22-1/2
Spojka so zárezným prstencom Priamy tvar | kužeľový závit
Ak si chcete stiahnuť 3D modely a produktové listy, zaregistrujte sa.
| variants.productNumber |
|---|

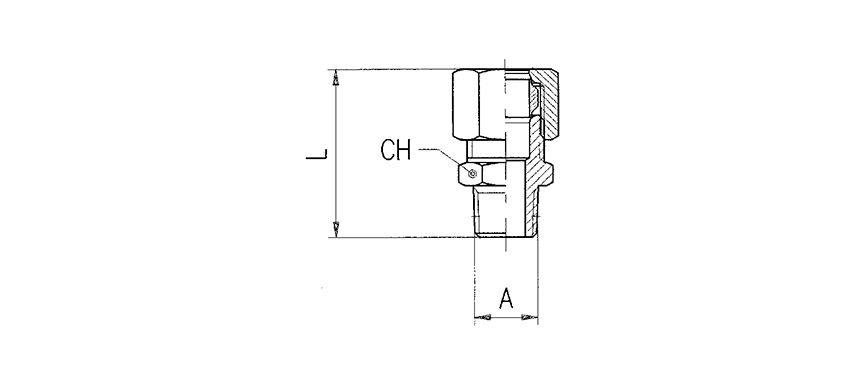

| Typ | Priemer hadice | Prípoj A | L | CH |
|---|---|---|---|---|
| A-13480-4-1/8 | 4 | R 1/8" | 26,5 | 11 |
| A-13480-4-1/4 | 4 | R 1/4" | 29,5 | 14 |
| A-13480-6-1/8 | 6 | R 1/8" | 28 | 11 |
| A-13480-6-1/4 | 6 | R 1/4" | 31,5 | 14 |
| A-13480-6-3/8 | 6 | R 3/8" | 32 | 17 |
| A-13480-8-1/8 | 8 | R 1/8" | 30 | 13 |
| A-13480-8-1/4 | 8 | R 1/4" | 33,5 | 14 |
| A-13480-8-3/8 | 8 | R 3/8" | 34 | 17 |
| A-13480-10-1/4 | 10 | R 1/4" | 36 | 16 |
| A-13480-10-3/8 | 10 | R 3/8" | 36,5 | 17 |
| A-13480-10-1/2 | 10 | R 1/2" | 38 | 21 |
| A-13480-12-1/4 | 12 | R 1/4" | 37 | 18 |
| A-13480-12-3/8 | 12 | R 3/8" | 37,5 | 18 |
| A-13480-12-1/2 | 12 | R 1/2" | 39 | 21 |
| A-13480-14-3/8 | 14 | R 3/8" | 37,5 | 20 |
| A-13480-14-1/2 | 14 | R 1/2" | 40 | 21 |
| A-13480-15-1/2 | 15 | R 1/2" | 40 | 21 |
| A-13480-16-1/2 | 16 | R 1/2" | 42,5 | 22 |
| A-13480-16-3/4 | 16 | R 3/4" | 44 | 27 |
| A-13480-18-1/2 | 18 | R 1/2" | 43,5 | 24 |
| A-13480-18-3/4 | 18 | R 3/4" | 45 | 27 |
| A-13480-22-1/2 | 22 | R 1/2" | 46 | 30 |
| A-13480-22-3/4 | 22 | R 3/4" | 47,5 | 30 |
| Materiál tesnenia: | Bez tesnenia |
|---|---|
| Prevedenie: | Závitová |
